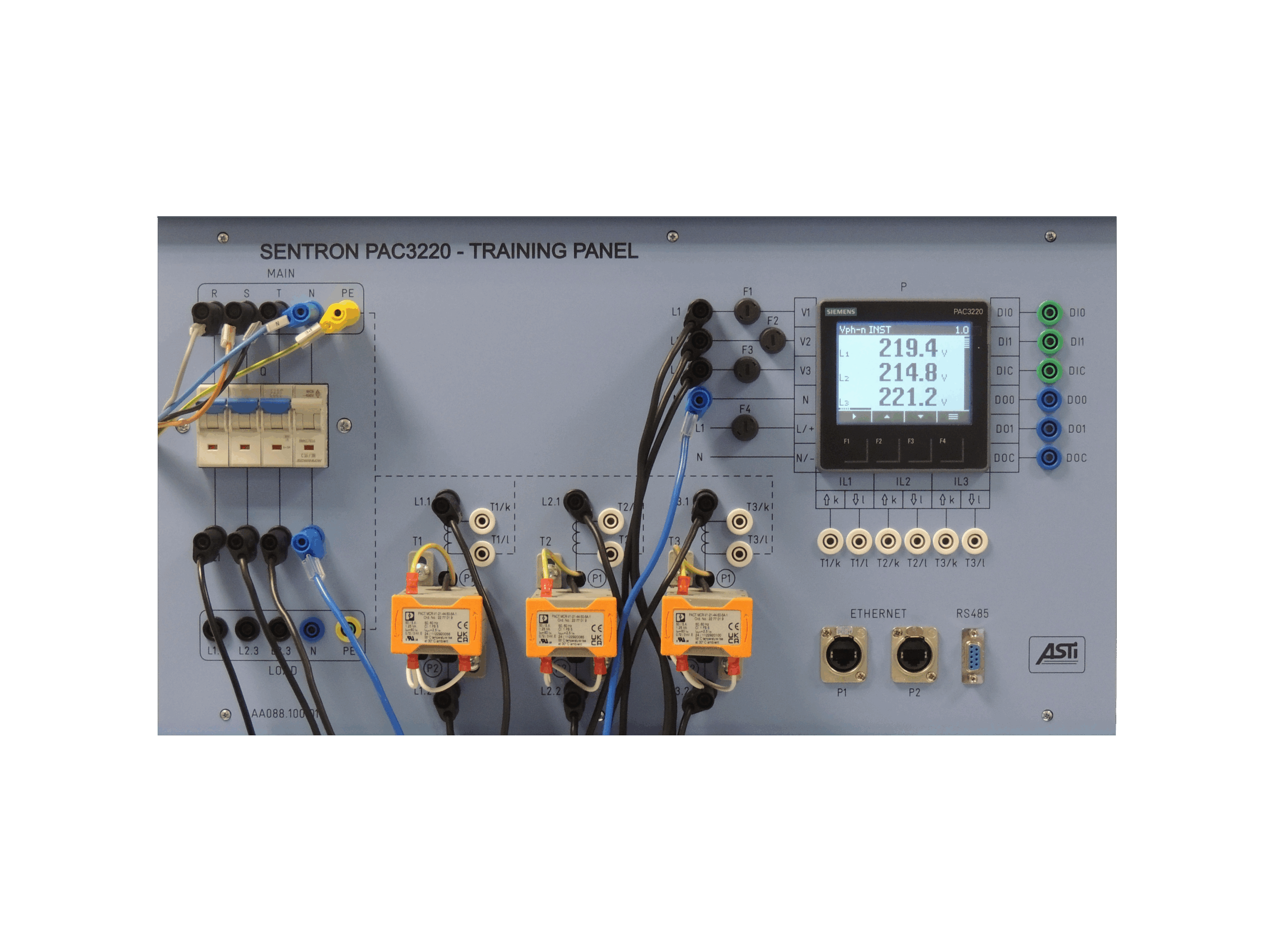

SENTRON PAC3220 ENERGY MEASUREMENT TRAINING PANEL

AA088.100.01

  • ENERGY METER EQUIPMENTS


Includes main parts:

• SIEMENS SENTRON PAC3220 MEASURING INSTRUMENT: full graphic LCD display, serial interface, Modbus RTU/TCP protocol

• PHOENIX CURRENT TRANSFORMERS: 60 A AC primary current, 5 A AC secondary current, 1.25 VA rated power

The panel also includes:

• 1x circuit breaker 3-pole

• 3x current transformers

• 4 mm safety sockets for external connection

• RS485 (MODBUS RTU) serial interface socket

• Ethernet socket

SIZE (W x H x D): 532 x 297 x 170 mm  NET WEIGHT: 3.50 kg

THE PACKAGE ALSO INCLUDES: Ethernet cable, User manual

RECOMMENDED: Safety connection cables 4 mm, RS485 (MODBUS RTU) cable
